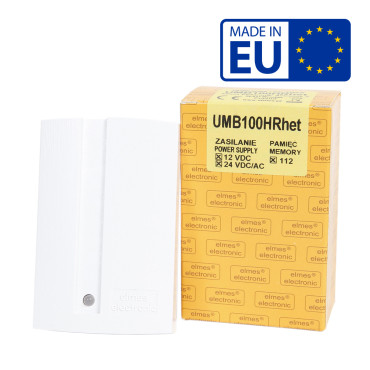

One channel superheterodyne wireless receiver UMB100HR-HET 12/24/112
Dynamic code system:
KEELOQ® of Microchip Corp. USA
Operating frequency:
433,92 MHz
Receiver type:
superheterodyne (sensitivity - 105 dBm)
Receiver memory capacity:
112 keyfobs (12-24V)
Number of channels/relay outputs:
1
Average operating distance:
up to 150 m in open field
Power supply:
0..35 VDC or 12..27 VAC (not included)
Operating temperature:
-20 - +40 °C
Dimensions:
96x63x28 mm
Additional advantages:
- One galvanic separated relay output with NC/NO terminals
- One OC (open collector) transistor type output for acoustic indication of relay output switch-over
- Two color LED indicating state of the relay output
- Comfortable wide range of AC and DC power supply voltages
- Highly sensitive and selective superhet receiver module
- Output relay ratings - 1A, 120VAC/30VDC
- Signal output S (1A/60V max.) OC type
- Sabotage alarm terminal NC type (at box closed)
