AGM WOLF-7 PRO NW1

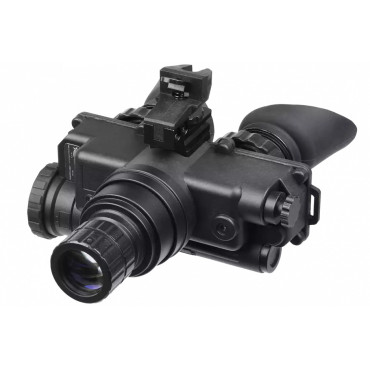

The AGM Wolf-7 PRO is a bi-ocular Night Vision goggle system built around high-grade image intensifier tubes. They are anexceptional choice for hands free use. Built with high-grade opticsand simple, reliable electronics, the Wolf-7 PRO provides bright and clear night vision images, even in the most trying conditions. This unit includes a built-in IR light source for reading maps or basic, short-range illumination in complete darkness.
The AGM Wolf-7 PRO is available with a variety of accessories such as 8X magnification lenses for long-range viewing, head or helmet mounts for hands-free operation, and additional, high powered IR illuminators for long-range use. Waterproof, rugged, light, and compact, the Wolf-7 PRO is the perfect hands-free unit for a variety of tough operations.
Features
- Compact, rugged design
- Waterproof
- Head or helmet-mountable for hands-free operation
- Ergonomic, simple, easy-to-operate controls
- Highlight overload protection
- Built-in Infrared illuminator
- External power supply capability
- 3-Year warranty
Specifications
Interpupillary Distance
15 mm
External Power Supply
Yes (2.8-4.2V)
Image Intensifier Tube
Gen 2+
Resolution
45-54 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm; F/ 1.2
FOV
40°
Focus Range
0.25 m to infinity
Eye Relief
15 mm
Diopter Adjustment
-4 to +5 diopters
Led Indicators
- Low Battery - IR On
Automatic Brightness Control
Yes
Infrared Illuminator
Yes
Battery Type
Two AA Alkaline
Battery Life (Operating)
- Up to 40hrs (IR off) - Up to 30hrs (IR on)
Waterproof
Yes (IP65)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
510 g (1.1 lb)
Overall Dimensions
183 × 132 × 58 mm (7.2 × 5.2 × 2.3 in)
Package Includes
Night Vision Goggles, Neck Strap, Headgear, Bayonet/Horn Interface Shoe, Helmet Mount, Lens Cloth, Soft Carrying Case
Download Datasheet
Download User Manual
