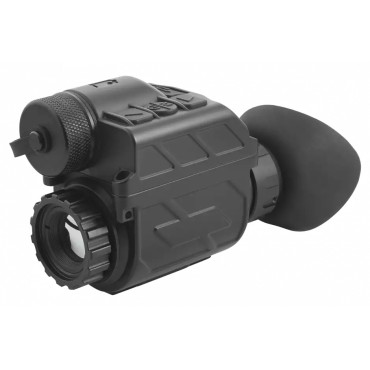

AGM StingIR 384
The AGM StingIR miniature handheld observational thermal monocular is equipped with 384×288 or 640×480 12μm high-sensitivity infrared detector and high-resolution OLED display. It supports functions of observation, digital compass, inclinometer, and so on. The highsensitivity built-in thermal detector provides you with clear view even in total darkness. The AGM StingIR is a full-featured unit, weighing less than 7 ounces/200 grams. The monocular can be used as a handheld device, or mounted on the head harness or helmets for hands-free operations. The monocular is suitable for security enforcement, outdoor hunting, wilderness exploration, search and rescue and other fields.
Features
- 12μm high-sensitivity detector
- 384×288 resolution
- Head- or helmet-mountable for hands-free usage
- Compact, sturdy design
- High-resolution OLED display
- Multiple thermal image palettes
- Device supports up to 8× digital zoom
- Powered by one CR123A/RCR123 or 18650 Lithium battery
- Up to 5 hours continuous running
- Digital compass and inclinometer
- Type-C interface
- 5-Year warranty
Specifications
Digital Compass
Yes
Palettes
Default, Outdoor, Arctic, or Rainforest
Exit Pupil Diameter
20 mm
Digital Magnification
1x - 4x
Detector type
12 μm Uncooled VOx Microbolometer
FFC (Flat Field Correction)
Auto (1 to 10 min. interval) or Manual
Refresh rate
50 Hz
Aperture
F1.3
Resolution
384×288
Lens (focal length)
16 mm
Field of view (H × X)
16.3° × 12.3° (H × V)
Digital zoom
1×, 2×, 3×, 4×
Diopter adjustment range
-5 to +2 dpt
Monitor
1024×768 OLED
Video output
PAL video output via USB port
Battery Type
One CR123A(3V) or RCR123(3.7V) or 18650(4.2V)
Battery Operating Time
CR123A - up to 3 hours / RCR123 - up to 2 hours / 18650 - up to 5 hours CR123A - up to 2.5 hours / RCR123 - up to 1.5 hours / 18650 - up to 4.5 hours
External power supply
5 VDC/2 A, 1.5 W
Operating Temperature Range
-10°C to 60°C (14°F to 140°F)
Weight
200 g (7.0 oz)
Overall Dimensions
140 × 70 × 50 mm (5.5 × 2.7 × 2.0 in)
Protection Level
IP67
Magnification
1×
