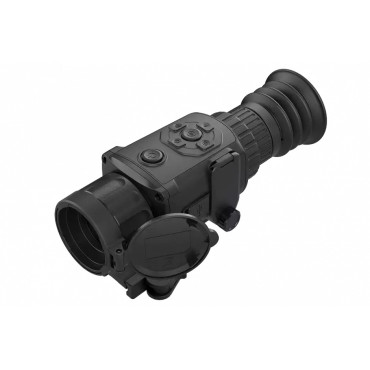

AGM RATTLER TS35-640
AGM Rattler TS35-640 is the compact thermal imaging scope developed for 24 hours operation under any weather and environmental conditions. This rifle scope with 35 mm Germanium lens is perfect unit for medium range shooting.
Thermal image riflescope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS35-640 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.
Features
- 640×512 thermal resolution
- 12 μm, 35 mK NETD high sensitivity detector
- Fast 50Hz imaging
- 1024×768 resolution, 0.39-inch OLED display
- 2x optical magnification
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Video recording and snapshot, built-in EMMC (16 GB)
- Various reticle types and colors
- Stadiametric rangefinder
- Adjustable color palettes
- Wi-Fi data transmission
- Standby mode
- Waterproof, shockproof
- Up to 4.5 hours continuous working
- External power supply capability
- 5-Year warranty
Specifications
Magnification
2x
Palettes
Black Hot, White Hot, Red Hot, Fusion
Reticle
5 types, 4 colors, on/off
Drop Test Height
1.5m (4.9 feet)
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric Rangefinder)
Scene Mode
Jungle, Recognition
Picture In Picture Mode (PIP)
Yes (2× Zoom)
Video Recording
Yes
Defective Pixels Correction (DPC)
Yes
Uniformity Correction
Auto, Manual, External Correction
Digital Magnification
2x - 16x
Detector type
12μm, Uncooled, 50 Hz
Standby Mode
Yes
Resolution
640 × 512
Detection Range (6' object)
1,750m/yd
Lens system
35 mm; F/1.0
Field of view (H × X)
12.5° × 10.0°
Digital zoom
1×, 2×, 4×, 8×
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768, 50 Hz
Storage
Built-in EMMC (16 GB)
Battery Type
Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output
Yes (via USB)
Battery Life (Operating)
Up to 4.5 hr
External power supply
5 VDC/2 A, USB Type-C interface
Operating Temperature Range
-20°C to +55°C (-4°F to +131°F)
Degree of Protection
IP67
Weight
535 g (1.18 lb)
Overall Dimensions
187× 63 × 80 mm (7.4 × 2.5 × 3.1 in)
Package Includes
Thermal Imaging Rifle Scope, Mount, USB Cable, Lens Cloth, Manual
Download Datasheet
Download User Manual
