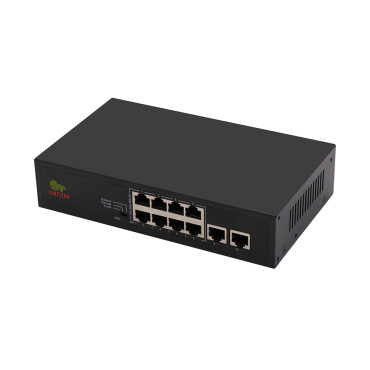

8 port PoE switch PSW-8 1.0
8 port PoE switch PSW-8 1.0 with automatical PoE devices detection and LED indication.
Download PSW-8 1.0 Datasheet
Main Features
Interface:
8 PoE ports + 2 Ethernet ports
Network Protocols:
IEEE 802.3i 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af/at
PoE Support:
8*10/100M
PoE Standard:
IEEE 802.3af/at
Dimension:
200x120x45 mm
Weight:
600 g
Additional features:
— 8 PoE + 2 Uplink 10/100M ports switch
— Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at, store and forward
— With DIP switch supports 10M up to 250m transmission distance via cat 6 cable
— LED indicators for monitoring power, link, activity and speed
— Circuit protection prevents power interference between ports
— Detects PoE power device automatically
