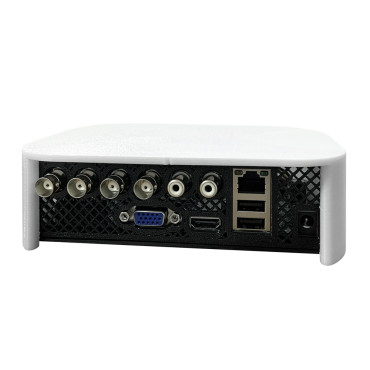

5.0MP for 4 cameras Cloud Bridge

Kód produktu: 34836
Dostupnosť: 10

Počet hodnotení: 0 Pridať recenziu

112,06 €

Množstvo - +

A high-tech device for organizing a video surveillance system. The connection to 4 video cameras with 5.0 MP resolution is allowed. In the hybrid mode - up to 2 AHD cameras with 2.0 MP resolution and up to 2 IP cameras with 2.0 MP resolution. The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 100 Mbit/s. This model is equipped with 1 audio input and output for recording and sound playback.

Main Features

Supported camera quantity:

4 AHD or analog cameras / Up to 16 IP cameras

Recording:

4x5M-N@12, 4xAHD-H@15 (AHD mode) 16x1080p@25, 4x5.0Mp@25 (IP mode)

Hybrid:

2xAHD-H@25+2x1080p@25, 4xAHD-M@25+4x960p@25

Video compression:

H.264. Classic codec is a good choice to keep recordings with a normal resolution and image quality with a reasonable storage space

Audio inputs/outputs:

1xRCA/1xRCA. 1 audio input (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback

Video outputs:

1xVGA, 1xHDMI

Supported HDD (HDD not included):

Network:

Ethernet 10/100Base-T

Management and control:

Optical mouse

Operating temperature:

0 - +55 °C

Dimensions:

165х113х48 mm, 265 g

Housing material:

Plastic

Additional advantages:

— 4-channel analog / 16-channel IP cameras — AHD/TVI/CVI/CVBS/IP support — 5.0Mp AHD/IP support — ONVIF 2.4+ protocol support — Easy p2p connection of any third party camera to Partizan Cloud by Onvif protocol or analog BNC connection — Connect cameras to Cloud Bridge and then each channel of Cloud Bridge to Partizan Cloud by MAC address — 3 years warranty

HDD Usage Info (AHD Hybrid Recorder)

FORMAT Resolution

D1 704x576

960H 960x576

720p 1280x720

960p 1280x960

1080p 1920x1080

4.0Mp 2592x1520

1 hour

0.85GB

1.3GB

1.41GB

1.91GB

3.33GB

5GB

24 hours

20GB

30.7GB

34GB

46GB

80GB

120GB

10 days

200GB

306GB

340GB

460GB

800GB

1200GB

30 days

600GB

912GB

1000GB

1400GB

2400GB

3600GB

Download Cloud Bridge Datasheet Download Software
