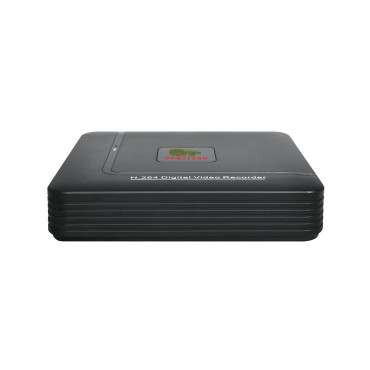

A budget device for small video surveillance network with a full set of basic functions of AHD DVR and with the ability to play audio files. The connection to 4 video cameras with 5.0 Mp resolution is allowed.
All the video surveillance channels are recorded simultaneously by the device in real-time mode. Four recording modes - fulltime, alarm, motion or schedule - provide an opportunity to configure the system of video surveillance according to defined tasks within every period of time. The backup to USB storage devices is allowed.
The H.265 codec (high-performance video compression technology) allows you to get a high-resolution video of minimum size (without any quality loss) saving much space on your hard disk. The network managing can be provided from any place of the world. You can also connect a hard disks up to 8Tb each (not included) to this DVR.
The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 100 Mbit/s.
This model is equipped with the audio input and output for recording and sound playback.
Main Features
Supported camera quantity:
4 AHD or analog cameras
Recording:
4x5M-N@25, 4x4M-N@25, 4xAHD-H@25
Hybrid:
4x5M-N@25+2x2Mp@25
Video compression:
H.265. It is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk
Audio inputs/outputs:
1ch RCA/1ch RCA. 1 audio inputs (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback
Video outputs:
1xVGA, 1xHDMI
Supported HDD (HDD not included):
1хSATA HDD ≤ 8Tb
Network:
Ethernet 10/100Base-T
Management and control:
Optical mouse, power adapter
Operating temperature:
0 - +55 °C
Dimensions:
210х200х49 mm, 900 g
Housing material:
Plastic
Additional advantages:
— AHD/TVI/CVI/CVBS/IP support
— 5.0Mp AHD support
— ONVIF 2.4 protocol support
— Support mobile monitoring: iOS & Android
— Ability to work with Partizan Cloud Storage
— Remote access to the device with Partizan MAC
— 3 years warranty
