4 channel superheterodyne wireless receiver U4HS

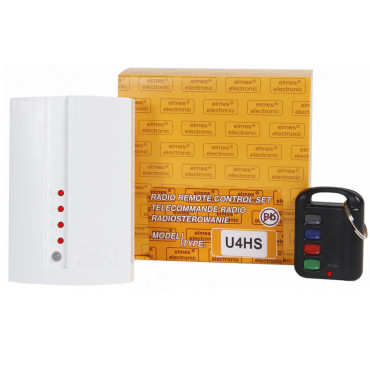

The U4HS set consists of four channel receiver U4HR and one four channel keyfob transmitter CH4HT. The set is designed for use in alarm systems and remote control applications.
The U4HR receiver features excellent sensitivity, selectivity and complies with the latest EU relevant standards concerning SRD (Short Range Devices) of remote control products.
The U4HR receiver operates with all Elmes Electronic 434 MHz hoping code radio band transmitters, wireless detectors and fixed code RP501T transmitter.
The receiver is available in two power supply versions: standard 12VDC (U4HR) or 24VDC (U4HR/24V)
Download Datasheet U4HS
Download Manual U4HS
Main Features
Dynamic code system:
KEELOQ® of Microchip Corp. USA
Operating frequency:
433,92 MHz
Receiver type:
superheterodyne (sensitivity - 105 dBm)
Receiver memory capacity:
112 keyfobs (12-24V)
Number of channels/relay outputs:
4
Average operating distance:
up to 150 m in open field
Power supply:
12 VDC (not included), 24V AC/DC as option (not included)
Operating temperature:
-20 - +40 °C
Dimensions:
96x63x28 mm
Additional advantages:
- ON/OFF (bistable output mode)
- automatic OFF after programmed time (monostable output mode timing: from 0,25s up to 4 hrs)
- mini alarm control panel
- Output relay ratings: 60VA (128VAC/1A) each
- Current consumption: 20mA plus 40mA on relays set
- Signal output S (1A/60V max.) OC type
- Sabotage alarm terminals NC type (at box closed)
