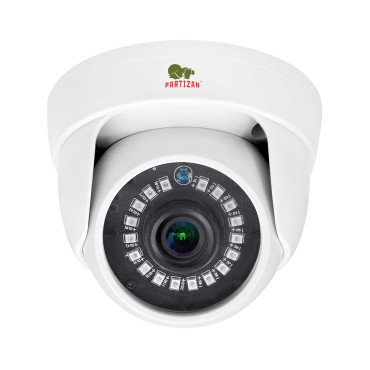

1.0MP AHD camera CDM-223S-IR HD 3.5
This camera model will become an excellent choice if you are looking for a simple but reliable solution for indoor video surveillance. The camera has a resolution of 1.0 Mp and is equipped with 1/4" SOI matrix from the Taiwan manufacturer with a good image quality under any lighting conditions. The camera is equipped with an array of 24 infrared LEDs for night video surveillance. They help to obtain a monochrome image at a distance of up to 20 meters with a viewing angle of 60°.
The night mode is switched automatically. The camera lens has a fixed focal length of 2.8 mm and provides maximum image quality at a distance of about 3 meters. This camera supports 4 operating modes, such as AHD, TVI, CVI, Analog and is fully compatible with the analog DVRs of all popular standards. The operating temperature of the camera is from +10 to +50 °C.
Download datasheet CDM-223S-IR HD 3.5
Main Features
Image sensor:
1/4" SOI
Resolution:
1.0 Mp (HD 720p). Surveillance for the small spaces, human faces and large objects are visible
Lens:
Fixed focus, f=2.8 mm. Wide angle, best recognition results at the distance up to 3 meters
Night vision:
Up to 20 meters
Housing material:
High-quality plastic
Housing protection:
IP44. Water splashes and external objects protection, for indoor use only
Power supply:
DC12V, 0.4А
Operating temperature:
+10 - +50 °C
Additional advantages:
- Multi-mode options AHD-TVI-CVI-Analog. You can switch that camera to any analog HD format, camera is compatible with the third party recorders
- SMD IR leds
- 3 years warranty
