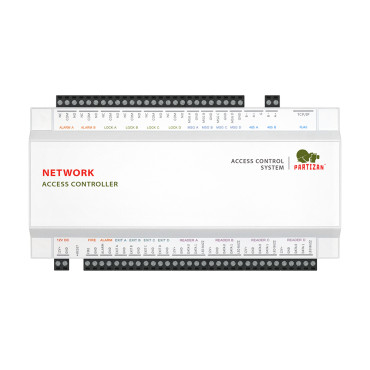

Network controller PAC-42.NET 1.0 (4 doors, 8 readers)
It is a high-quality and reliable reader controller that supports Wiegand 26/34 interface.
The model provides the opportunity to operate with four doors and supports simultaneous connection of up to 8 readers. Bulk non-volatile memory device can store information on 30,000 users and 60,000 events, and also store data for 10 years without power supply.
To ensure safety, the controller is equipped with a function of fire door unlocking and has special ports for connection to fire alarm systems. In addition, PAC-42.NET 1.0 has the TCP/IP interface for remote monitoring. The lock is activated by 6.5 A relay. The model operation is configured via free Partizan software.
The optimum temperature for the reliable controller operation is in the range from -20 to +50°C. Also, the housing is equipped with protection against penetration of dust and moisture according to the standard IP44. The warranty on the model PAC-42.NET 1.0 is extended to 3 years due to use of best and reliable components.
Download datasheet PAC-42.NET 1.0
Main Features
Doors:
4
Number of readers:
8
Card reader interface:
Wiegand 26/34
Door sensor:
4
Exit button:
4
Fire alarm Inputs/Outputs, pcs.:
1/1
Alarm Inputs/Outputs, pcs.:
1/1
Ethernet:
+
Dimensions:
215x125x37mm, 240g
Housing material:
High-quality plastic
Additional advantages:
— Network 4 Doors controller
— Max number of users 30 000
— Max number of events 60 000
— Fire alarm out
— Alarm in/out
— Built-in web interface
— Wiegand input interface
— Free professional Software
— MQTT support
— 3 years warranty
