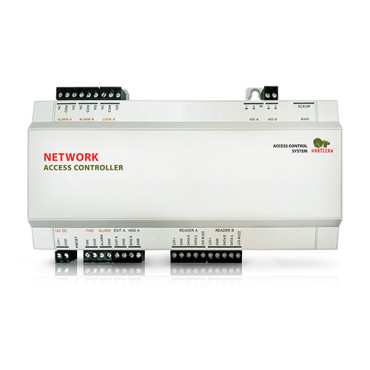

Network controller PAC-12.NET 1.0 (1 door, 2 readers)
It is a reliable controller for lock management.The model is designed for one door and supports simultaneous work with two card reader with Wiegand 26/34 interface. Non-volatile memory stores data for 10 years without power supply. Whereby the device memory is enough to save 30,000 users and 60,000 events.
The controller is provided with features for extra safety in unforeseen situations: door unlocking in case of fire, non-volatile memory, ability to connect fire alarm and remote network monitoring via the TCP/IP interface. Relay can operate with locks up to 3.5A. Adjustment for any requirements and tasks shall be performed by free Partizan software.
For reliable operation in adverse conditions, the PAC-12.NET 1.0 housing is protected against penetration of dust and moisture according to IP44 standard; the admissible working temperature range is from -20 to +50°C. The extended 3-years equipment warranty is another undeniable advantage.
Download datasheet PAC-12.NET 1.0
Doors:
1
Number of readers:
2
Card reader interface:
Wiegand 26/34
Exit button:
1
Fire alarm Inputs/Outputs:
1/1
Alarm Inputs/Outputs:
1/1
Ethernet:
+
Dimensions:
215x125x37mm, 160g
Housing material:
High-quality plastic
Additional advantages:
— Network 1 Door controller
— Max number of users 30 000
— Max number of events 60 000
— Fire alarm out
— Alarm in/out
— Built-in web interface
— Wiegand input interface
— Free professional Software
— MQTT support
— 3 years warranty
